Cannondale Scalpel HT Hi MOD 1 Mountain Bike-Carbon 22

The Purest Form of Racing: A whole new breed of XC Hardtail, purpose built to hurt ’em on the ups, drop ’em on the downs and propel you straight to the top step.
Where it thrives: Between the tape
What it’s built for: Speed, Efficiency, and Endurance
Key Features
Progressive, ultralight Hi-MOD Carbon frame / HollowGram crank
Lefty Ocho Carbon 110mm fork / HollowGram 25 carbon wheelset
Shimano XTR/XT 12-speed group / Cannondale C1 Carbon bar and post / Cannondale Wheel Sensor
Specifications
Frameset
Frame: Scalpel HT Hi-MOD Carbon, Proportional Response Design, PF30-83, tapered head tube, 55mm chainline, Speed Release 12mm thru axle w/UDH hanger
Fork: Lefty Ocho 120 Carbon, 110mm, Chamber Damper with remote lockout, OppO Spring System, tapered steerer, 50mm offset
Wheels
Rims: HollowGram 25, Superlight Hi-Impact Carbon, 28h, 25mm IW, tubeless ready
Hubs: (F) HollowGram Lefty 60 / (R) HollowGram w/DT Swiss Star Ratchet internals, 12x148mm
Tyres: (F) Schwalbe Racing Ray EVO, 29 x 2.25, SnakeSkin, Addix Speedgrip, tubeless ready / (R) Schwalbe Racing Ralph EVO, 29 x 2.25, SnakeSkin, Addix Speed, tubeless ready
Drivetrain
Pedals: Not included

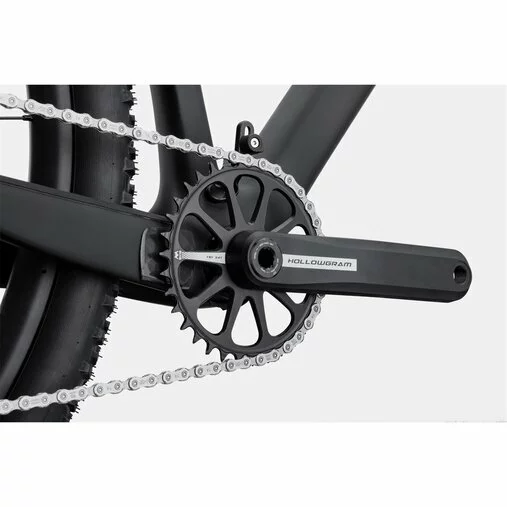

Crank: HollowGram, BB30 83MTB, OPI SpideRing, 34T, 55mm chainline
Front Derailleur: N/A

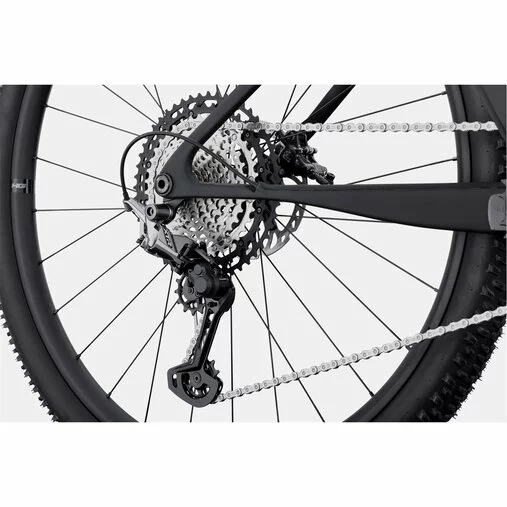

Rear Derailleur: Shimano XTR
Shifters: Shimano XT, 12-speed
Chain: Shimano XT, 12-speed
Bottom Bracket: Cannondale Alloy PressFit30
Rear Cogs: Shimano XT, 10-51, 12-speed
Components

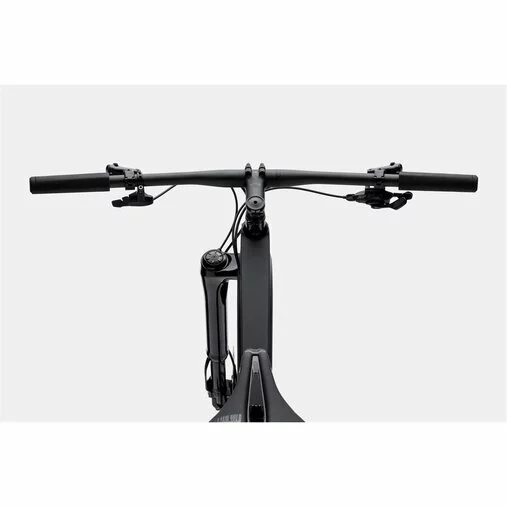

Handlebar: Cannondale 1 Flat, Carbon, 31.8mm, 9° back, 760mm
Grips: Cannondale XC Silicone
Stem: Cannondale 1, 7075 Alloy, 1-1/8, 31.8, 7°
Headset: Integrated, 1-1/8 to 1.5, sealed angular contact bearings

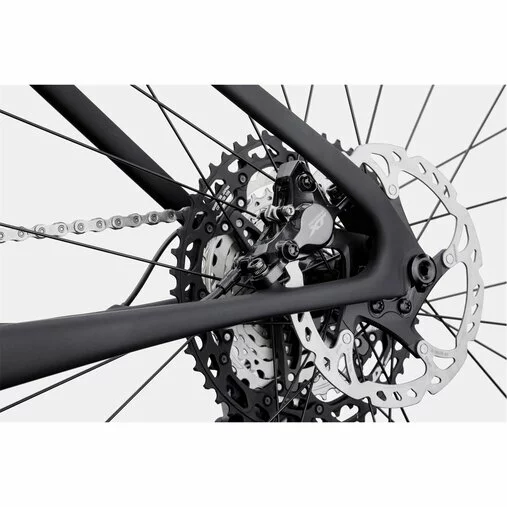

Brakes: Shimano XT hydraulic disc, 180/160mm XT rotors
Brake Levers: Shimano XT hydraulic disc
Saddle: Prologo Dimension NDR, Tirox rails
Seatpost: Cannondale C1 Carbon, 27.2x400mm
Bike Sizing
Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.

XS
S
M
L
XL
XXL

Rider Height
4’6 – 5’2 / 137cm – 157cm
5’1 – 5’4 / 155cm – 162cm
5’4 – 5’8 / 162cm – 170cm
5’7 – 6’0 / 170cm – 183cm
6’0 – 6’3 / 183cm – 192cm
6’3 – 6’6 / 193cm – 203cm
