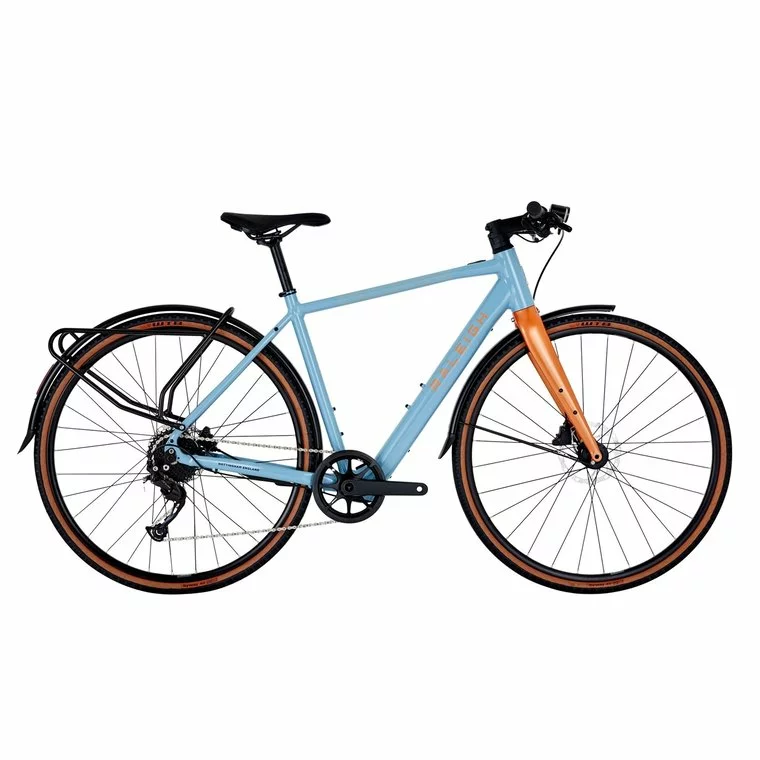

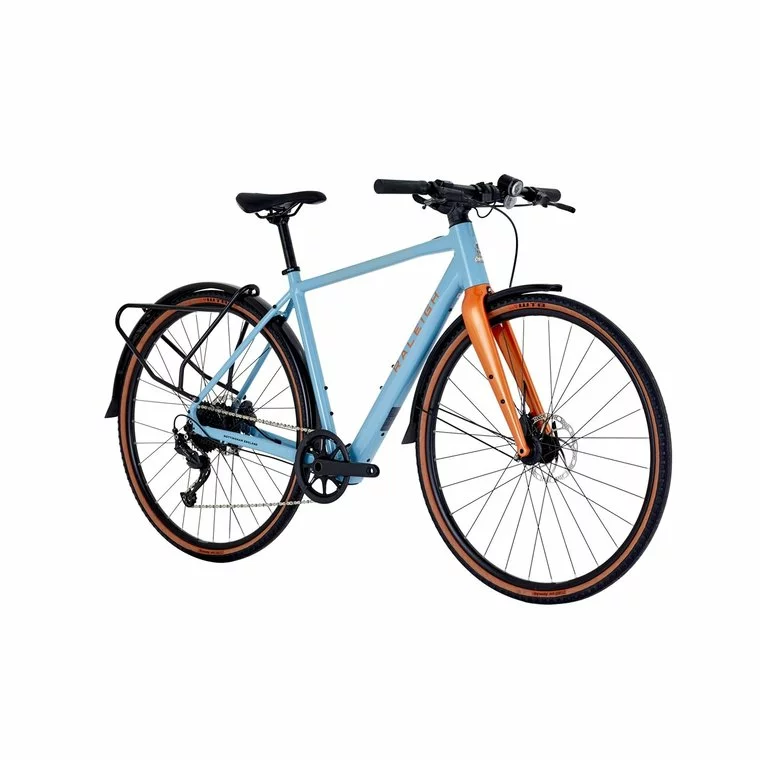

Raleigh Trace Electric Hybrid Bike-Blue 22

Raleigh’s lightest e-Bike yet. Eliminate your fuel output and make tracks around the city that leave no trace. Raleigh designed the Trace Electric Hybrid Bike to be fun and liberating. Wave goodbye to gridlock, there is adventure to be had. This lightweight electric bike makes nipping around the city 10x more enjoyable. The unassuming frame hides a 250Wh battery to give your journey a welcome boost meaning you have time to prioritise more important decisions. Make your mark and redesign your routine, no sweat, no grind, just ride.
Key Features
This 16.5kg bike can nip around the city with ease thanks to its lightweight design
Electric assistance hidden in the frame for when you need a boost
Specifications
Frameset

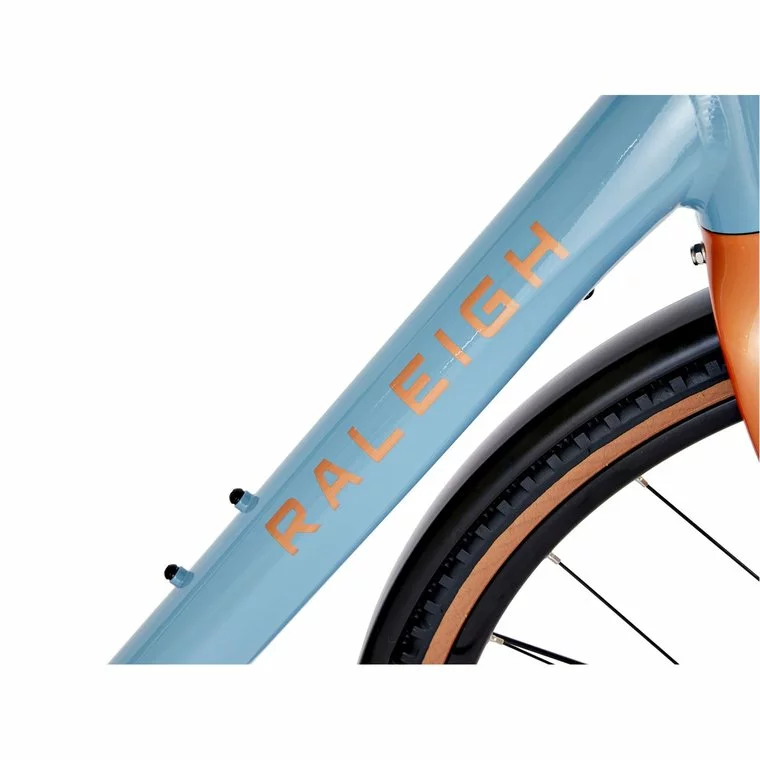

Frame: Aluminum electric hybrid design
Front Fork: Tapered carbon fork
Rear Shock: n/a
Wheels
Front Hub: 700c double side wall rim with thru axle aluminium hub 28H
Rear Hub: 700c doube side wall rim with X35 motor hub 32H
Front Tire: Maxxis DTR-1, 650b x 47c

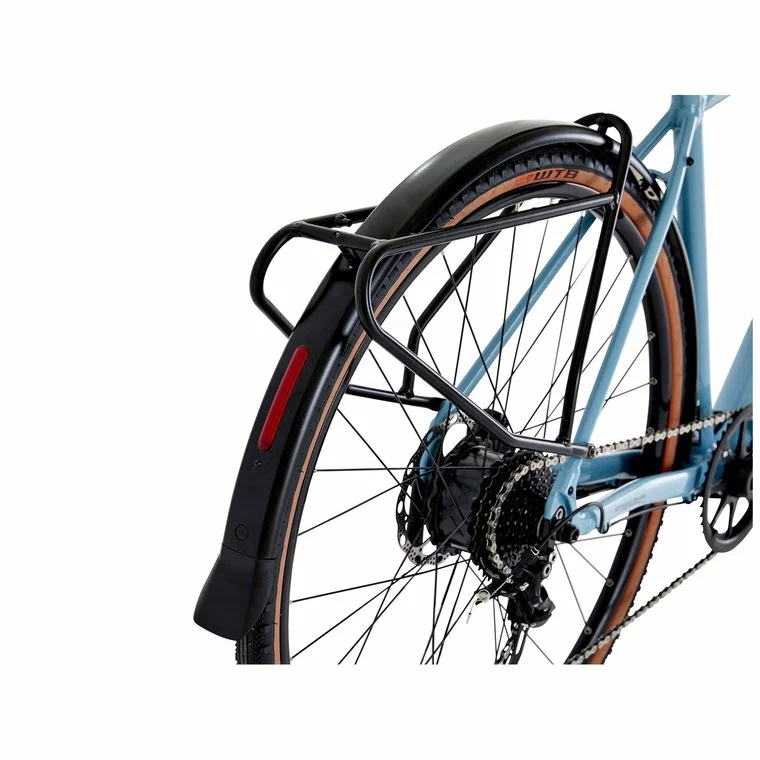

Rear Tire: 700x40c WTB ByWAY tanwall
Inner Tubes:622×40 schrader valve
Drivetrain
Pedals: Aluminum platform pedal
Crankset: Aluminum crank with direct mount chainring and Chainguard 40t 170mm
Front Derailleur: n/a
Rear Derailleur: Shimano Alivio 9 speed rear derailleur
Shifters: Shimano Acera rapidfire 9 speed shifter
Bottom Bracket: Pressfit BB 86mm
Components

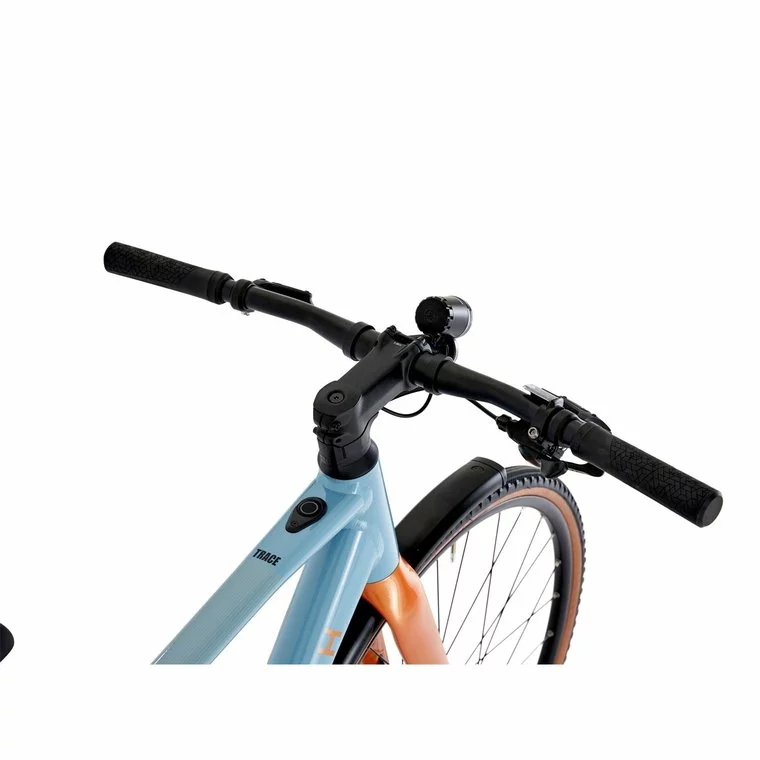

Handlebar: Aluminum handlebar 640mm
Grips: XLC comfort grips
Stem: Aluminum stem XS/S-80mm, M-90mm, L-100mm
Brakes: Tektro R280 Flat mount hydraulic disc brake, 160mm

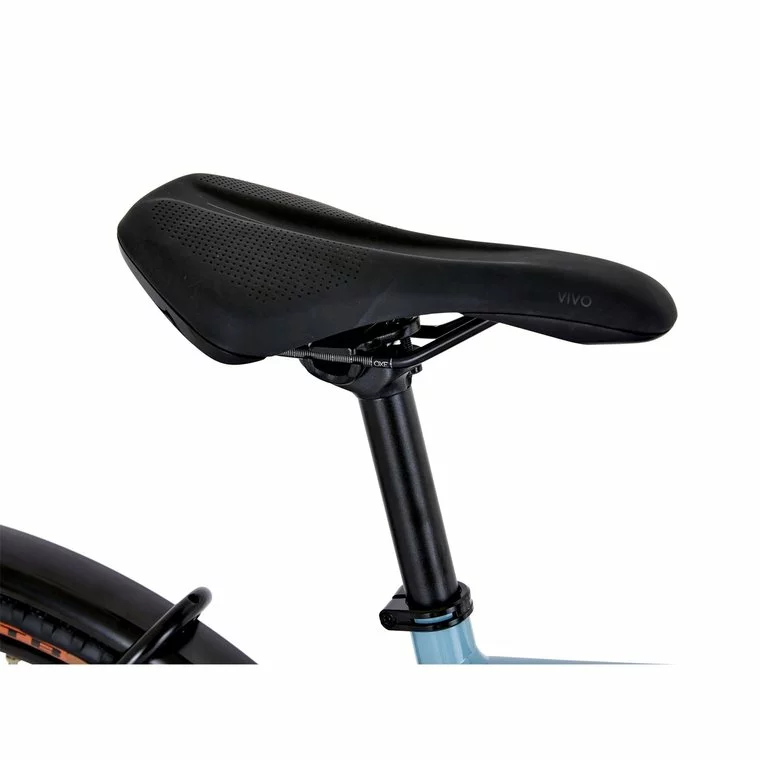

Saddle: Selle Royal Vivo
Seatpost: Aluminum seatpost 27.2x350mm
Electric
Motor: Ebikemotion X35 rear hub

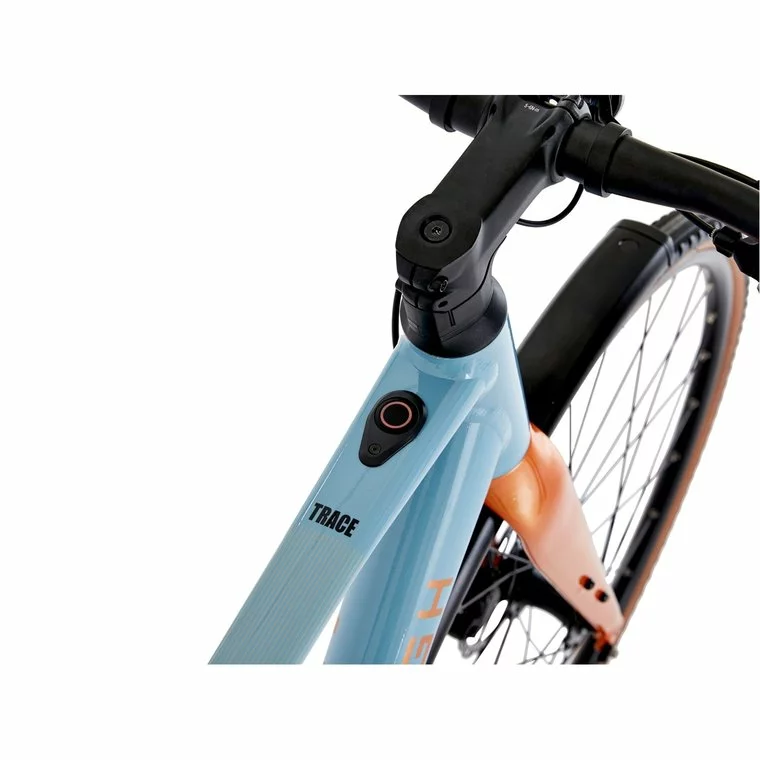

Display: Ebikemotion X35 Top tube HMI iWoc 1 control
Range: 50 Miles
Charger: Ebikemotion X35 2A
Charge time: 4 Hours
