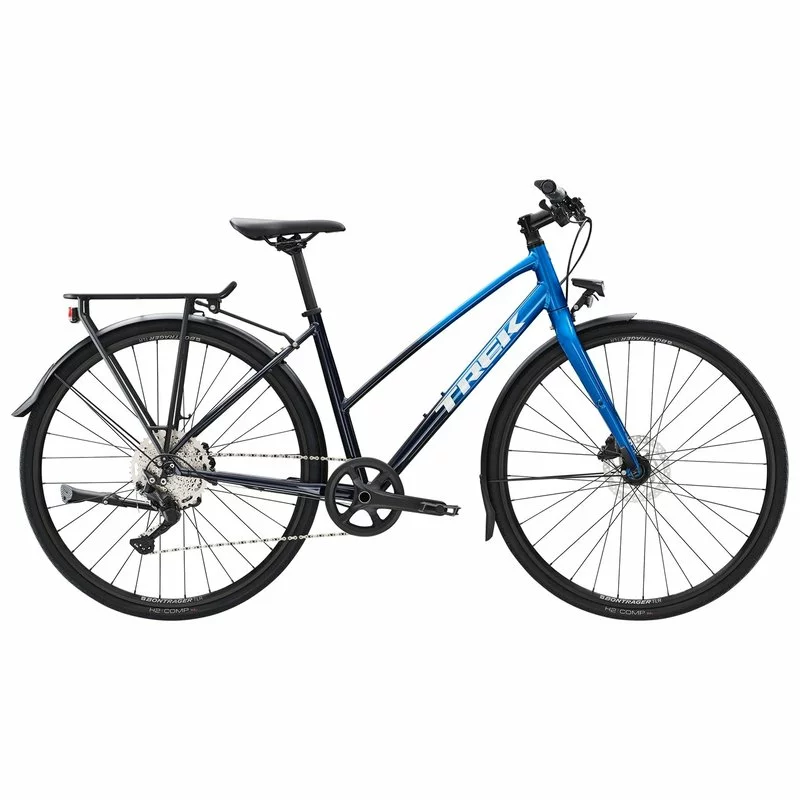

Trek FX 3 Disc Stagger Equipped Hybrid Bike-Alpine Blue 23

The FX 3 Disc Equipped Stagger is a stylish and versatile hybrid bike that comes with all the accessories you need to get out and ride more. The included lights, mudguards and rear rack make it perfect for commuting, and the powerful disc brakes and performance 1x drivetrain deliver speed and confidence whether you’re working out or running errands.
Key Features
A lightweight aluminium frame, a carbon fork, hydraulic disc brakes for all-weather stopping power, and a simple 1x drivetrain that ditches the front derailleur for less clutter and easier operation.
Wide-range 11-46 cassette gives you all the gears you need to conquer hills and crush flats.
Decked out with front and rear lights, mudguards, a rear rack, puncture-resistant tyres and a vibration-absorbing handlebar with ergonomic grips.
Specifications
Frameset
Frame: Alpha Gold Aluminium
Fork: FX Carbon, rack and mudguard mounts, flat-mount disc
Wheels
Rims: Bontrager Tubeless Ready Disc
Hubs: (F) Formula DC-20, alloy, 6-bolt, 5×100 mm QR (R) Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm
Tyres: Bontrager H2 Comp, wire bead, 30 tpi, 700x32c
Drivetrain
Pedals: Bontrager City pedals
Front Derailleur: N/A
Rear Derailleur: Shimano Deore M5120, long cage
Shifters: Shimano Deore M4100, 10 speed
Chain: KMC X10, 10-speed
Crankset: Prowheel alloy, 40T narrow-wide ring
Rear Cogs: Shimano Deore M4100, 11-46, 10-speed
Components
Handlebar: Bontrager Satellite Plus IsoZone, alloy, 31.8 mm
Stem: Bontrager alloy, 31.8 mm clamp 90mm length (S,M), 100mm length (L,XL)
Brakes: Shimano UR300 hydraulic disc
Brake Levers: Shimano MT201
Saddle: Bontrager H1
Seatpost: Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Bike Sizing
Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.

XS
S
M
L
XL
XXL

Rider Height
4’6 – 5’2 / 137cm – 157cm
5’1 – 5’4 / 155cm – 162cm
5’4 – 5’8 / 162cm – 170cm
5’7 – 6’0 / 170cm – 183cm
6’0 – 6’3 / 183cm – 192cm
6’3 – 6’6 / 193cm – 203cm
